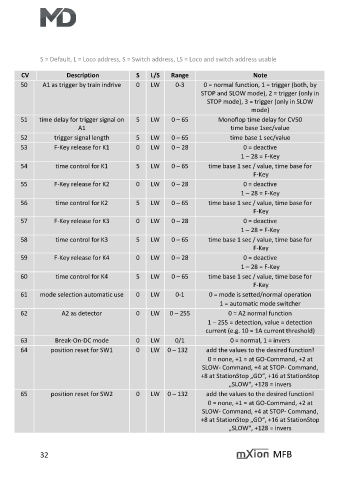

S = Default, L = Loco address, S = Switch address, LS = Loco and switch address usable

CV Description S L/S Range Note
50 A1 as trigger by train indrive 0 LW 0-3 0 = normal function, 1 = trigger (both, by
STOP and SLOW mode), 2 = trigger (only in
STOP mode), 3 = trigger (only in SLOW
mode)

51 time delay for trigger signal on 5 LW 0 – 65 Monoflop time delay for CV50
A1 time base 1sec/value

52 trigger signal length 5 LW 0 – 65 time base 1 sec/value
53 F-Key release for K1 0 LW 0 – 28 0 = deactive
1 – 28 = F-Key
54 time control for K1 5 LW 0 – 65 time base 1 sec / value, time base for
F-Key
55 F-Key release for K2 0 LW 0 – 28 0 = deactive
1 – 28 = F-Key
56 time control for K2 5 LW 0 – 65 time base 1 sec / value, time base for
F-Key
57 F-Key release for K3 0 LW 0 – 28 0 = deactive
1 – 28 = F-Key
58 time control for K3 5 LW 0 – 65 time base 1 sec / value, time base for
F-Key
59 F-Key release for K4 0 LW 0 – 28 0 = deactive
1 – 28 = F-Key
60 time control for K4 5 LW 0 – 65 time base 1 sec / value, time base for
F-Key
61 mode selection automatic use 0 LW 0-1 0 = mode is setted/normal operation
1 = automatic mode switcher
62 A2 as detector 0 LW 0 – 255 0 = A2 normal function
1 – 255 = detection, value = detection
current (e.g. 10 = 1A current threshold)
63 Break-On-DC mode 0 LW 0/1 0 = normal, 1 = invers
64 position reset for SW1 0 LW 0 – 132 add the values to the desired function!
0 = none, +1 = at GO-Command, +2 at
SLOW- Command, +4 at STOP- Command,
+8 at StationStop „GO“, +16 at StationStop
„SLOW“, +128 = invers
65 position reset for SW2 0 LW 0 – 132 add the values to the desired function!
0 = none, +1 = at GO-Command, +2 at
SLOW- Command, +4 at STOP- Command,
+8 at StationStop „GO“, +16 at StationStop
„SLOW“, +128 = invers
