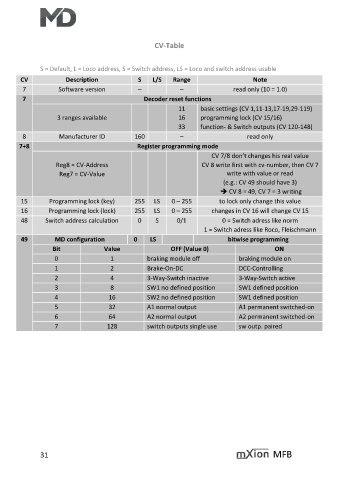

CV-Table

S = Default, L = Loco address, S = Switch address, LS = Loco and switch address usable

CV Description S L/S Range Note
7 Software version – – read only (10 = 1.0)
7 Decoder reset functions
11 basic settings (CV 1,11-13,17-19,29-119)
3 ranges available 16 programming lock (CV 15/16)
33 function- & Switch outputs (CV 120-148)
8 Manufacturer ID 160 – read only
7+8 Register programming mode

CV 7/8 don’t changes his real value
Reg8 = CV-Address CV 8 write first with cv-number, then CV 7
Reg7 = CV-Value write with value or read
(e.g.: CV 49 should have 3)
➔ CV 8 = 49, CV 7 = 3 writing
15 Programming lock (key) 255 LS 0 – 255 to lock only change this value

16 Programming lock (lock) 255 LS 0 – 255 changes in CV 16 will change CV 15
48 Switch address calculation 0 S 0/1 0 = Switch adress like norm
1 = Switch adress like Roco, Fleischmann
49 MD configuration 0 LS bitwise programming
Bit Value OFF (Value 0) ON
0 1 braking module off braking module on
1 2 Brake-On-DC DCC-Controlling
2 4 3-Way-Switch inactive 3-Way-Switch active
3 8 SW1 no defined position SW1 defined position
4 16 SW2 no defined position SW1 defined position

5 32 A1 normal output A1 permanent switched-on
6 64 A2 normal output A2 permanent switched-on
7 128 switch outputs single use sw outp. paired
