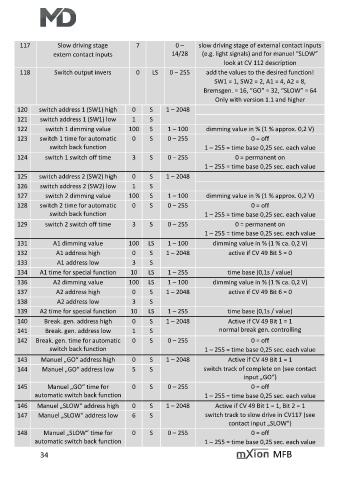

117 Slow driving stage 7 0 – slow driving stage of external contact inputs
extern contact inputs 14/28 (e.g. light signals) and for manuel “SLOW”
look at CV 112 description
118 Switch output invers 0 LS 0 – 255 add the values to the desired function!
SW1 = 1, SW2 = 2, A1 = 4, A2 = 8,
Bremsgen. = 16, “GO” = 32, “SLOW” = 64
Only with version 1.1 and higher
120 switch address 1 (SW1) high 0 S 1 – 2048

121 switch address 1 (SW1) low 1 S
122 switch 1 dimming value 100 S 1 – 100 dimming value in % (1 % approx. 0,2 V)
123 switch 1 time for automatic 0 S 0 – 255 0 = off
switch back function 1 – 255 = time base 0,25 sec. each value
124 switch 1 switch off time 3 S 0 – 255 0 = permanent on
1 – 255 = time base 0,25 sec. each value
125 switch address 2 (SW2) high 0 S 1 – 2048
126 switch address 2 (SW2) low 1 S
127 switch 2 dimming value 100 S 1 – 100 dimming value in % (1 % approx. 0,2 V)
128 switch 2 time for automatic 0 S 0 – 255 0 = off
switch back function 1 – 255 = time base 0,25 sec. each value
129 switch 2 switch off time 3 S 0 – 255 0 = permanent on
1 – 255 = time base 0,25 sec. each value

131 A1 dimming value 100 LS 1 – 100 dimming value in % (1 % ca. 0,2 V)
132 A1 address high 0 S 1 – 2048 active if CV 49 Bit 5 = 0
133 A1 address low 3 S
134 A1 time for special function 10 LS 1 – 255 time base (0,1s / value)
136 A2 dimming value 100 LS 1 – 100 dimming value in % (1 % ca. 0,2 V)
137 A2 address high 0 S 1 – 2048 active if CV 49 Bit 6 = 0

138 A2 address low 3 S
139 A2 time for special function 10 LS 1 – 255 time base (0,1s / value)
140 Break. gen. address high 0 S 1 – 2048 Active if CV 49 Bit 1 = 1
141 Break. gen. address low 1 S normal break gen. controlling
142 Break. gen. time for automatic 0 S 0 – 255 0 = off
switch back function 1 – 255 = time base 0,25 sec. each value
143 Manuel „GO“ address high 0 S 1 – 2048 Active if CV 49 Bit 1 = 1
144 Manuel „GO“ address low 5 S switch track of complete on (see contact
input „GO“)
145 Manuel „GO“ time for 0 S 0 – 255 0 = off
automatic switch back function 1 – 255 = time base 0,25 sec. each value
146 Manuel „SLOW“ address high 0 S 1 – 2048 Active if CV 49 Bit 1 = 1, Bit 2 = 1
147 Manuel „SLOW“ address low 6 S switch track to slow drive in CV117 (see
contact input „SLOW“)
148 Manuel „SLOW“ time for 0 S 0 – 255 0 = off
automatic switch back function 1 – 255 = time base 0,25 sec. each value

34 MFB
