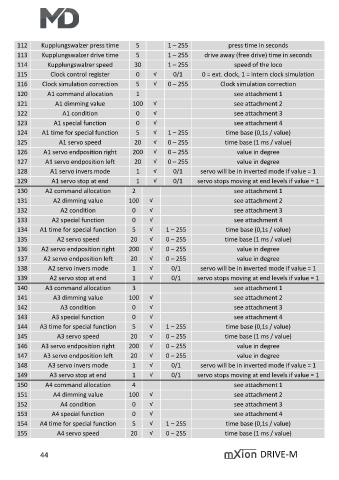

112 Kupplungswalzer press time 5 1 – 255 press time in seconds
113 Kupplungswalzer drive time 5 1 – 255 drive away (free drive) time in seconds

114 Kupplungswalzer speed 30 1 – 255 speed of the loco
115 Clock control register 0 √ 0/1 0 = ext. clock, 1 = intern clock simulation
116 Clock simulation correction 5 √ 0 – 255 Clock simulation correction
120 A1 command allocation 1 see attachment 1
121 A1 dimming value 100 √ see attachment 2
122 A1 condition 0 √ see attachment 3
123 A1 special function 0 √ see attachment 4
124 A1 time for special function 5 √ 1 – 255 time base (0,1s / value)
125 A1 servo speed 20 √ 0 – 255 time base (1 ms / value)

126 A1 servo endposition right 200 √ 0 – 255 value in degree
127 A1 servo endposition left 20 √ 0 – 255 value in degree
128 A1 servo invers mode 1 √ 0/1 servo will be in inverted mode if value = 1
129 A1 servo stop at end 1 √ 0/1 servo stops moving at end levels if value = 1
130 A2 command allocation 2 see attachment 1
131 A2 dimming value 100 √ see attachment 2
132 A2 condition 0 √ see attachment 3

133 A2 special function 0 √ see attachment 4
134 A1 time for special function 5 √ 1 – 255 time base (0,1s / value)
135 A2 servo speed 20 √ 0 – 255 time base (1 ms / value)
136 A2 servo endposition right 200 √ 0 – 255 value in degree
137 A2 servo endposition left 20 √ 0 – 255 value in degree
138 A2 servo invers mode 1 √ 0/1 servo will be in inverted mode if value = 1
139 A2 servo stop at end 1 √ 0/1 servo stops moving at end levels if value = 1
140 A3 command allocation 3 see attachment 1

141 A3 dimming value 100 √ see attachment 2
142 A3 condition 0 √ see attachment 3
143 A3 special function 0 √ see attachment 4
144 A3 time for special function 5 √ 1 – 255 time base (0,1s / value)
145 A3 servo speed 20 √ 0 – 255 time base (1 ms / value)
146 A3 servo endposition right 200 √ 0 – 255 value in degree
147 A3 servo endposition left 20 √ 0 – 255 value in degree
148 A3 servo invers mode 1 √ 0/1 servo will be in inverted mode if value = 1

149 A3 servo stop at end 1 √ 0/1 servo stops moving at end levels if value = 1
150 A4 command allocation 4 see attachment 1
151 A4 dimming value 100 √ see attachment 2
152 A4 condition 0 √ see attachment 3
153 A4 special function 0 √ see attachment 4
154 A4 time for special function 5 √ 1 – 255 time base (0,1s / value)
155 A4 servo speed 20 √ 0 – 255 time base (1 ms / value)

44 DRIVE-M
