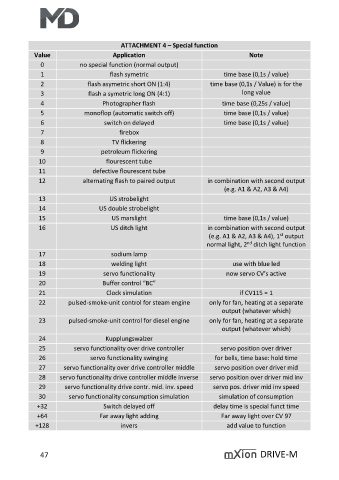

ATTACHMENT 4 – Special function
Value Application Note

0 no special function (normal output)
1 flash symetric time base (0,1s / value)
2 flash asymetric short ON (1:4) time base (0,1s / Value) is for the
3 flash a symetric long ON (4:1) long value
4 Photographer flash time base (0,25s / value)
5 monoflop (automatic switch off) time base (0,1s / value)
6 switch on delayed time base (0,1s / value)
7 firebox
8 TV flickering

9 petroleum flickering
10 flourescent tube
11 defective flourescent tube
12 alternating flash to paired output in combination with second output
(e.g. A1 & A2, A3 & A4)
13 US strobelight
14 US double strobelight
15 US marslight time base (0,1s / value)
16 US ditch light in combination with second output
st
(e.g. A1 & A2, A3 & A4), 1 output
nd
normal light, 2 ditch light function
17 sodium lamp
18 welding light use with blue led
19 servo functionality now servo CV’s active
20 Buffer control “BC”

21 Clock simulation if CV115 = 1
22 pulsed-smoke-unit control for steam engine only for fan, heating at a separate
output (whatever which)
23 pulsed-smoke-unit control for diesel engine only for fan, heating at a separate
output (whatever which)

24 Kupplungswalzer
25 servo functionality over drive controller servo position over driver
26 servo functionality swinging for bells, time base: hold time
27 servo functionality over drive controller middle servo position over driver mid
28 servo functionality drive controller middle inverse servo position over driver mid inv
29 servo functionality drive contr. mid. inv. speed servo pos. driver mid inv speed
30 servo functionality consumption simulation simulation of consumption
+32 Switch delayed off delay time is special funct time
+64 Far away light adding Far away light over CV 97

+128 invers add value to function

47 DRIVE-M
