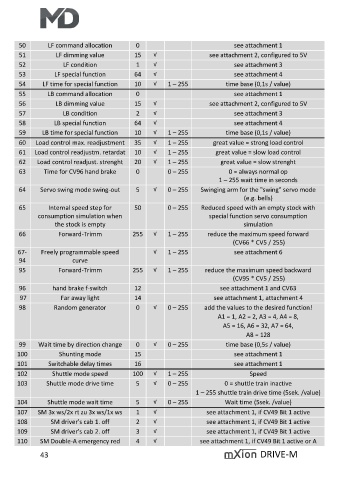

50 LF command allocation 0 see attachment 1
51 LF dimming value 15 √ see attachment 2, configured to 5V

52 LF condition 1 √ see attachment 3
53 LF special function 64 √ see attachment 4
54 LF time for special function 10 √ 1 – 255 time base (0,1s / value)
55 LB command allocation 0 see attachment 1
56 LB dimming value 15 √ see attachment 2, configured to 5V
57 LB condition 2 √ see attachment 3
58 LB special function 64 √ see attachment 4
59 LB time for special function 10 √ 1 – 255 time base (0,1s / value)

60 Load control max. readjustment 35 √ 1 – 255 great value = strong load control
61 Load control readjustm. retardat 10 √ 1 – 255 great value = slow load control
62 Load control readjust. strenght 20 √ 1 – 255 great value = slow strenght
63 Time for CV96 hand brake 0 0 – 255 0 = always normal op
1 – 255 wait time in seconds
64 Servo swing mode swing-out 5 √ 0 – 255 Swinging arm for the "swing" servo mode
(e.g. bells)
65 Internal speed step for 50 0 – 255 Reduced speed with an empty stock with
consumption simulation when special function servo consumption
the stock is empty simulation

66 Forward-Trimm 255 √ 1 – 255 reduce the maximum speed forward
(CV66 * CV5 / 255)

67- Freely programmable speed √ 1 – 255 see attachment 6
94 curve
95 Forward-Trimm 255 √ 1 – 255 reduce the maximum speed backward
(CV95 * CV5 / 255)
96 hand brake f-switch 12 see attachment 1 and CV63

97 Far away light 14 see attachment 1, attachment 4
98 Random generator 0 √ 0 – 255 add the values to the desired function!
A1 = 1, A2 = 2, A3 = 4, A4 = 8,
A5 = 16, A6 = 32, A7 = 64,
A8 = 128
99 Wait time by direction change 0 √ 0 – 255 time base (0,5s / value)
100 Shunting mode 15 see attachment 1
101 Switchable delay times 16 see attachment 1
102 Shuttle mode speed 100 √ 1 – 255 Speed
103 Shuttle mode drive time 5 √ 0 – 255 0 = shuttle train inactive
1 – 255 shuttle train drive time (5sek. /value)

104 Shuttle mode wait time 5 √ 0 – 255 Wait time (5sek. /value)
107 SM 3x ws/2x rt zu 3x ws/1x ws 1 √ see attachment 1, if CV49 Bit 1 active
108 SM driver’s cab 1. off 2 √ see attachment 1, if CV49 Bit 1 active
109 SM driver’s cab 2. off 3 √ see attachment 1, if CV49 Bit 1 active
110 SM Double-A emergency red 4 √ see attachment 1, if CV49 Bit 1 active or A
