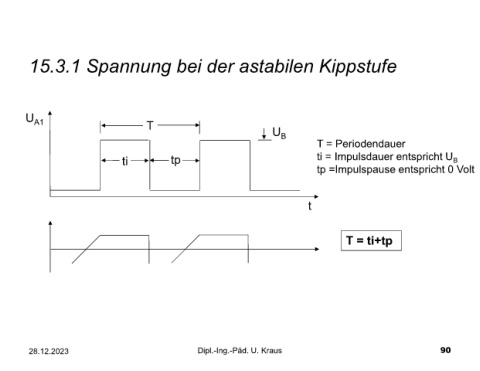

15.3.1 Spannung bei der astabilen Kippstufe
U A1
T
U B
T = Periodendauer
ti tp ti = Impulsdauer entspricht U B
tp =Impulspause entspricht 0 Volt
t
T = ti+tp
