15.3 Astabile Kippstufe
Ist eine Generatorschaltung, wird auch astabiler Multivibrator
genannt

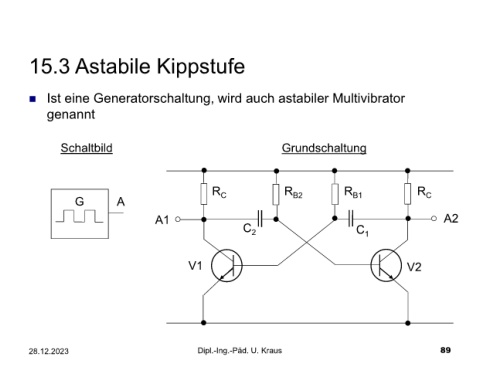

Schaltbild Grundschaltung
R C R B2 R B1 R C
G A
A1 A2
C 2 C 1
V1 V2
