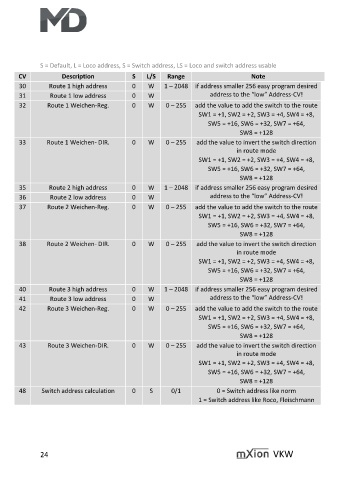

S = Default, L = Loco address, S = Switch address, LS = Loco and switch address usable
CV Description S L/S Range Note
30 Route 1 high address 0 W 1 – 2048 if address smaller 256 easy program desired
31 Route 1 low address 0 W address to the “low” Address-CV!
32 Route 1 Weichen-Reg. 0 W 0 – 255 add the value to add the switch to the route
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
33 Route 1 Weichen- DIR. 0 W 0 – 255 add the value to invert the switch direction
in route mode
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
35 Route 2 high address 0 W 1 – 2048 if address smaller 256 easy program desired

36 Route 2 low address 0 W address to the “low” Address-CV!
37 Route 2 Weichen-Reg. 0 W 0 – 255 add the value to add the switch to the route
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
38 Route 2 Weichen- DIR. 0 W 0 – 255 add the value to invert the switch direction
in route mode
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
40 Route 3 high address 0 W 1 – 2048 if address smaller 256 easy program desired
41 Route 3 low address 0 W address to the “low” Address-CV!
42 Route 3 Weichen-Reg. 0 W 0 – 255 add the value to add the switch to the route
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
43 Route 3 Weichen-DIR. 0 W 0 – 255 add the value to invert the switch direction
in route mode
SW1 = +1, SW2 = +2, SW3 = +4, SW4 = +8,
SW5 = +16, SW6 = +32, SW7 = +64,
SW8 = +128
48 Switch address calculation 0 S 0/1 0 = Switch address like norm
1 = Switch address like Roco, Fleischmann
