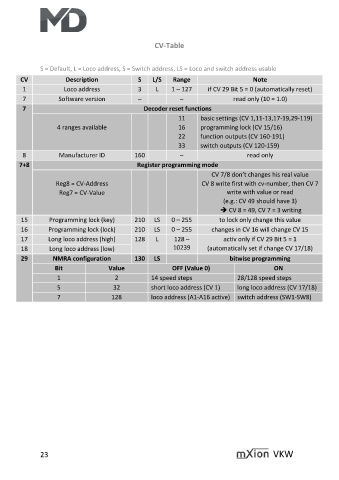

CV-Table

S = Default, L = Loco address, S = Switch address, LS = Loco and switch address usable

CV Description S L/S Range Note
1 Loco address 3 L 1 – 127 if CV 29 Bit 5 = 0 (automatically reset)
7 Software version – – read only (10 = 1.0)
7 Decoder reset functions
11 basic settings (CV 1,11-13,17-19,29-119)
4 ranges available 16 programming lock (CV 15/16)
22 function outputs (CV 160-191)
33 switch outputs (CV 120-159)
8 Manufacturer ID 160 – read only

7+8 Register programming mode
CV 7/8 don’t changes his real value
Reg8 = CV-Address CV 8 write first with cv-number, then CV 7
Reg7 = CV-Value write with value or read
(e.g.: CV 49 should have 3)
➔ CV 8 = 49, CV 7 = 3 writing

15 Programming lock (key) 210 LS 0 – 255 to lock only change this value
16 Programming lock (lock) 210 LS 0 – 255 changes in CV 16 will change CV 15
17 Long loco address (high) 128 L 128 – activ only if CV 29 Bit 5 = 1
18 Long loco address (low) 10239 (automatically set if change CV 17/18)
29 NMRA configuration 130 LS bitwise programming
Bit Value OFF (Value 0) ON
1 2 14 speed steps 28/128 speed steps
5 32 short loco address (CV 1) long loco address (CV 17/18)
7 128 loco address (A1-A16 active) switch address (SW1-SW8)

23 VKW
