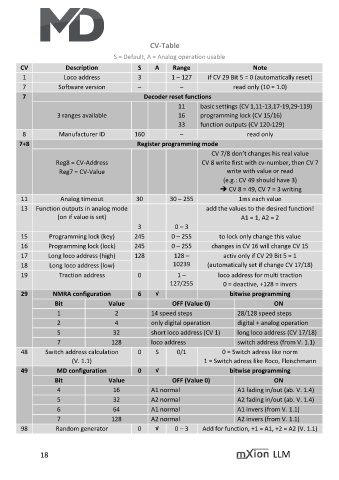

CV-Table
S = Default, A = Analog operation usable
CV Description S A Range Note
1 Loco address 3 1 – 127 if CV 29 Bit 5 = 0 (automatically reset)
7 Software version – – read only (10 = 1.0)
7 Decoder reset functions
11 basic settings (CV 1,11-13,17-19,29-119)
3 ranges available 16 programming lock (CV 15/16)
33 function outputs (CV 120-129)
8 Manufacturer ID 160 – read only
7+8 Register programming mode
CV 7/8 don’t changes his real value
Reg8 = CV-Address CV 8 write first with cv-number, then CV 7
Reg7 = CV-Value write with value or read
(e.g.: CV 49 should have 3)
➔ CV 8 = 49, CV 7 = 3 writing
11 Analog timeout 30 30 – 255 1ms each value
13 Function outputs in analog mode add the values to the desired function!
(on if value is set) A1 = 1, A2 = 2
3 0 – 3
15 Programming lock (key) 245 0 – 255 to lock only change this value
16 Programming lock (lock) 245 0 – 255 changes in CV 16 will change CV 15
17 Long loco address (high) 128 128 – activ only if CV 29 Bit 5 = 1
18 Long loco address (low) 10239 (automatically set if change CV 17/18)
19 Traction address 0 1 – loco address for multi traction
127/255 0 = deactive, +128 = invers
29 NMRA configuration 6 √ bitwise programming
Bit Value OFF (Value 0) ON
1 2 14 speed steps 28/128 speed steps
2 4 only digital operation digital + analog operation
5 32 short loco address (CV 1) long loco address (CV 17/18)
7 128 loco address switch address (from V. 1.1)
48 Switch address calculation 0 S 0/1 0 = Switch adress like norm
(V. 1.1) 1 = Switch adress like Roco, Fleischmann
49 MD configuration 0 √ bitwise programming
Bit Value OFF (Value 0) ON
4 16 A1 normal A1 fading in/out (ab. V. 1.4)
5 32 A2 normal A2 fading in/out (ab. V. 1.4)
6 64 A1 normal A1 invers (from V. 1.1)
7 128 A2 normal A2 invers (from V. 1.1)
98 Random generator 0 √ 0 – 3 Add for function, +1 = A1, +2 = A2 (V. 1.1)
