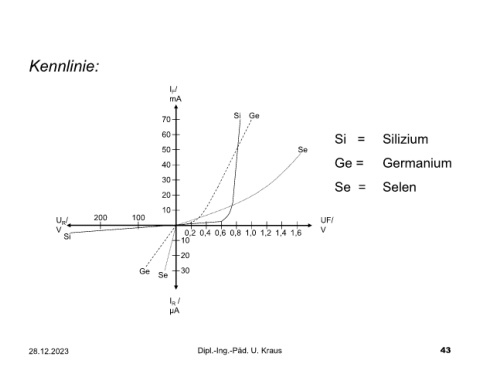

Kennlinie:



                                                         I /
                                                          F
                                                         mA



                                                      70                      Si   Ge

                                                      60
                                                                                                               Si   =          Silizium
                                                      50                                           Se

                                                      40                                                       Ge =            Germanium

                                                      30
                                                                                                               Se  =  Selen
                                                      20

                                                      10
                    U /         200         100                                                            UF/
                     R
                    V                                         0,2 0,4 0,6 0,8     1,0 1,2 1,4 1,6          V
                      Si                                     10


                                                             20

                                               Ge    Se      30




                                                         I /
                                                          R
                                                         µA
