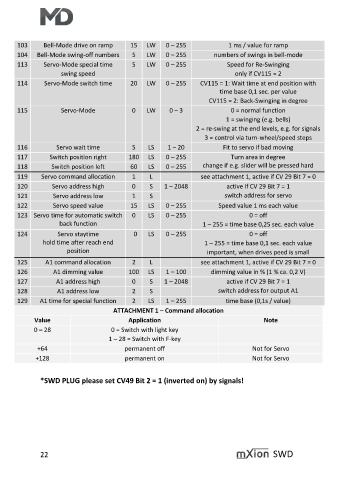

103 Bell-Mode drive on ramp 15 LW 0 – 255 1 ms / value for ramp
104 Bell-Mode swing-off numbers 5 LW 0 – 255 numbers of swings in bell-mode

113 Servo-Mode special time 5 LW 0 – 255 Speed for Re-Swinging
swing speed only if CV115 = 2
114 Servo-Mode switch time 20 LW 0 – 255 CV115 = 1: Wait time at end position with
time base 0,1 sec. per value
CV115 = 2: Back-Swinging in degree

115 Servo-Mode 0 LW 0 – 3 0 = normal function
1 = swinging (e.g. bells)
2 = re-swing at the end levels, e.g. for signals
3 = control via turn-wheel/speed steps
116 Servo wait time 5 LS 1 – 20 Fit to servo if bad moving
117 Switch position right 180 LS 0 – 255 Turn area in degree
118 Switch position left 60 LS 0 – 255 change if e.g. slider will be pressed hard
119 Servo command allocation 1 L see attachment 1, active if CV 29 Bit 7 = 0
120 Servo address high 0 S 1 – 2048 active if CV 29 Bit 7 = 1
121 Servo address low 1 S switch address for servo
122 Servo speed value 15 LS 0 – 255 Speed value 1 ms each value
123 Servo time for automatic switch 0 LS 0 – 255 0 = off
back function 1 – 255 = time base 0,25 sec. each value

124 Servo staytime 0 LS 0 – 255 0 = off
hold time after reach end 1 – 255 = time base 0,1 sec. each value
position important, when drives peed is small

125 A1 command allocation 2 L see attachment 1, active if CV 29 Bit 7 = 0
126 A1 dimming value 100 LS 1 – 100 dimming value in % (1 % ca. 0,2 V)
127 A1 address high 0 S 1 – 2048 active if CV 29 Bit 7 = 1
128 A1 address low 2 S switch address for output A1
129 A1 time for special function 2 LS 1 – 255 time base (0,1s / value)
ATTACHMENT 1 – Command allocation

Value Application Note
0 – 28 0 = Switch with light key
1 – 28 = Switch with F-key
+64 permanent off Not for Servo
+128 permanent on Not for Servo

*SWD PLUG please set CV49 Bit 2 = 1 (inverted on) by signals!

22 SWD
