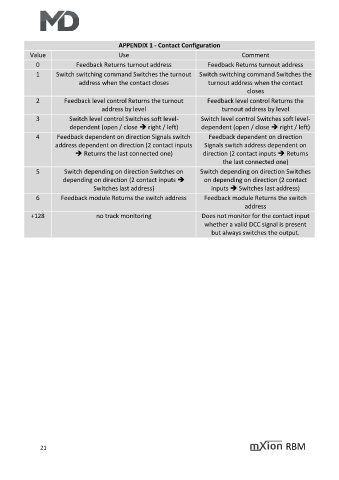

APPENDIX 1 - Contact Configuration
Value Use Comment
0 Feedback Returns turnout address Feedback Returns turnout address
1 Switch switching command Switches the turnout Switch switching command Switches the
address when the contact closes turnout address when the contact
closes
2 Feedback level control Returns the turnout Feedback level control Returns the
address by level turnout address by level
3 Switch level control Switches soft level- Switch level control Switches soft level-
dependent (open / close ➔ right / left) dependent (open / close ➔ right / left)
4 Feedback dependent on direction Signals switch Feedback dependent on direction
address dependent on direction (2 contact inputs Signals switch address dependent on
➔ Returns the last connected one) direction (2 contact inputs ➔ Returns
the last connected one)
5 Switch depending on direction Switches on Switch depending on direction Switches
depending on direction (2 contact inputs ➔ on depending on direction (2 contact
Switches last address) inputs ➔ Switches last address)
6 Feedback module Returns the switch address Feedback module Returns the switch
address
+128 no track monitoring Does not monitor for the contact input
whether a valid DCC signal is present
but always switches the output.
