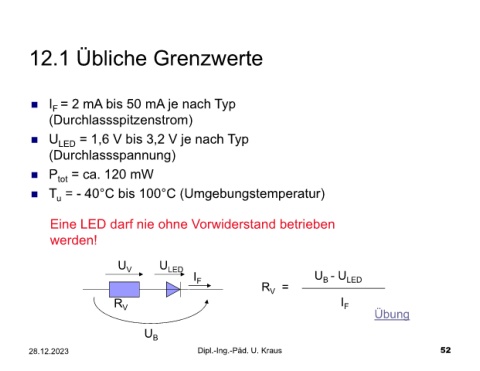

12.1 Übliche Grenzwerte
I = 2 mA bis 50 mA je nach Typ
F
(Durchlassspitzenstrom)
U LED = 1,6 V bis 3,2 V je nach Typ
(Durchlassspannung)
P tot = ca. 120 mW
T = - 40°C bis 100°C (Umgebungstemperatur)
u
Eine LED darf nie ohne Vorwiderstand betrieben
werden!
U V U LED
I F U - U LED
B
R =
V
R V I F
Übung
U B
