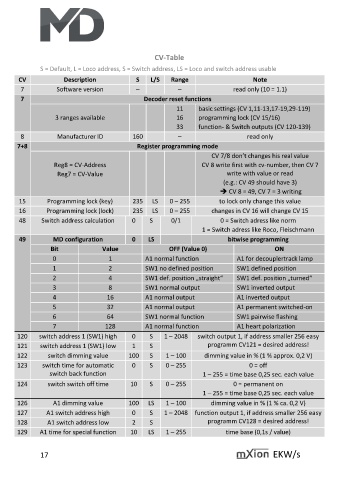

CV-Table
S = Default, L = Loco address, S = Switch address, LS = Loco and switch address usable
CV Description S L/S Range Note
7 Software version – – read only (10 = 1.1)
7 Decoder reset functions
11 basic settings (CV 1,11-13,17-19,29-119)
3 ranges available 16 programming lock (CV 15/16)
33 function- & Switch outputs (CV 120-139)
8 Manufacturer ID 160 – read only
7+8 Register programming mode
CV 7/8 don’t changes his real value
Reg8 = CV-Address CV 8 write first with cv-number, then CV 7
Reg7 = CV-Value write with value or read
(e.g.: CV 49 should have 3)
➔ CV 8 = 49, CV 7 = 3 writing
15 Programming lock (key) 235 LS 0 – 255 to lock only change this value
16 Programming lock (lock) 235 LS 0 – 255 changes in CV 16 will change CV 15
48 Switch address calculation 0 S 0/1 0 = Switch adress like norm
1 = Switch adress like Roco, Fleischmann
49 MD configuration 0 LS bitwise programming
Bit Value OFF (Value 0) ON
0 1 A1 normal function A1 for decouplertrack lamp
1 2 SW1 no defined position SW1 defined position
2 4 SW1 def. position „straight“ SW1 def. position „turned“
3 8 SW1 normal output SW1 inverted output
4 16 A1 normal output A1 inverted output
5 32 A1 normal output A1 permanent switched-on
6 64 SW1 normal function SW1 pairwise flashing
7 128 A1 normal function A1 heart polarization
120 switch address 1 (SW1) high 0 S 1 – 2048 switch output 1, if address smaller 256 easy
121 switch address 1 (SW1) low 1 S programm CV121 = desired address!
122 switch dimming value 100 S 1 – 100 dimming value in % (1 % approx. 0,2 V)
123 switch time for automatic 0 S 0 – 255 0 = off
switch back function 1 – 255 = time base 0,25 sec. each value
124 switch switch off time 10 S 0 – 255 0 = permanent on
1 – 255 = time base 0,25 sec. each value
126 A1 dimming value 100 LS 1 – 100 dimming value in % (1 % ca. 0,2 V)
127 A1 switch address high 0 S 1 – 2048 function output 1, if address smaller 256 easy
128 A1 switch address low 2 S programm CV128 = desired address!
129 A1 time for special function 10 LS 1 – 255 time base (0,1s / value)
