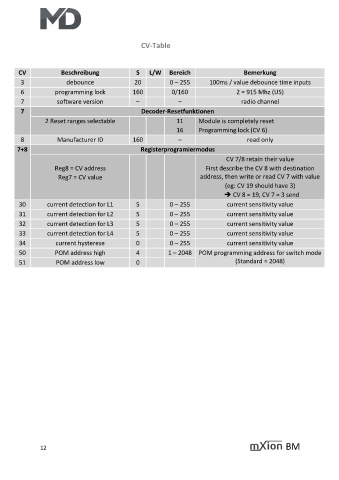

CV-Table

CV Beschreibung S L/W Bereich Bemerkung
3 debounce 20 0 – 255 100ms / value debounce time inputs

6 programming lock 160 0/160 2 = 915 Mhz (US)
7 software version – – radio channel
7 Decoder-Resetfunktionen
2 Reset ranges selectable 11 Module is completely reset
16 Programming lock (CV 6)
8 Manufacturer ID 160 – read only
7+8 Registerprogramiermodus
CV 7/8 retain their value
Reg8 = CV address First describe the CV 8 with destination
Reg7 = CV value address, then write or read CV 7 with value
(eg: CV 19 should have 3)
➔ CV 8 = 19, CV 7 = 3 send
30 current detection for L1 5 0 – 255 current sensitivity value
31 current detection for L2 5 0 – 255 current sensitivity value
32 current detection for L3 5 0 – 255 current sensitivity value
33 current detection for L4 5 0 – 255 current sensitivity value

34 current hysterese 0 0 – 255 current sensitivity value
50 POM address high 4 1 – 2048 POM programming address for switch mode
51 POM address low 0 (Standard = 2048)

12 BM
